Emission monitoring for a sustainable future
G7200 - Multi Gas Monitoring System
Marine fuel consumption produces harmful emissions, endangering the environment and health. To meet regulations and safeguard both, vessels require advanced gas monitoring systems.
Product information

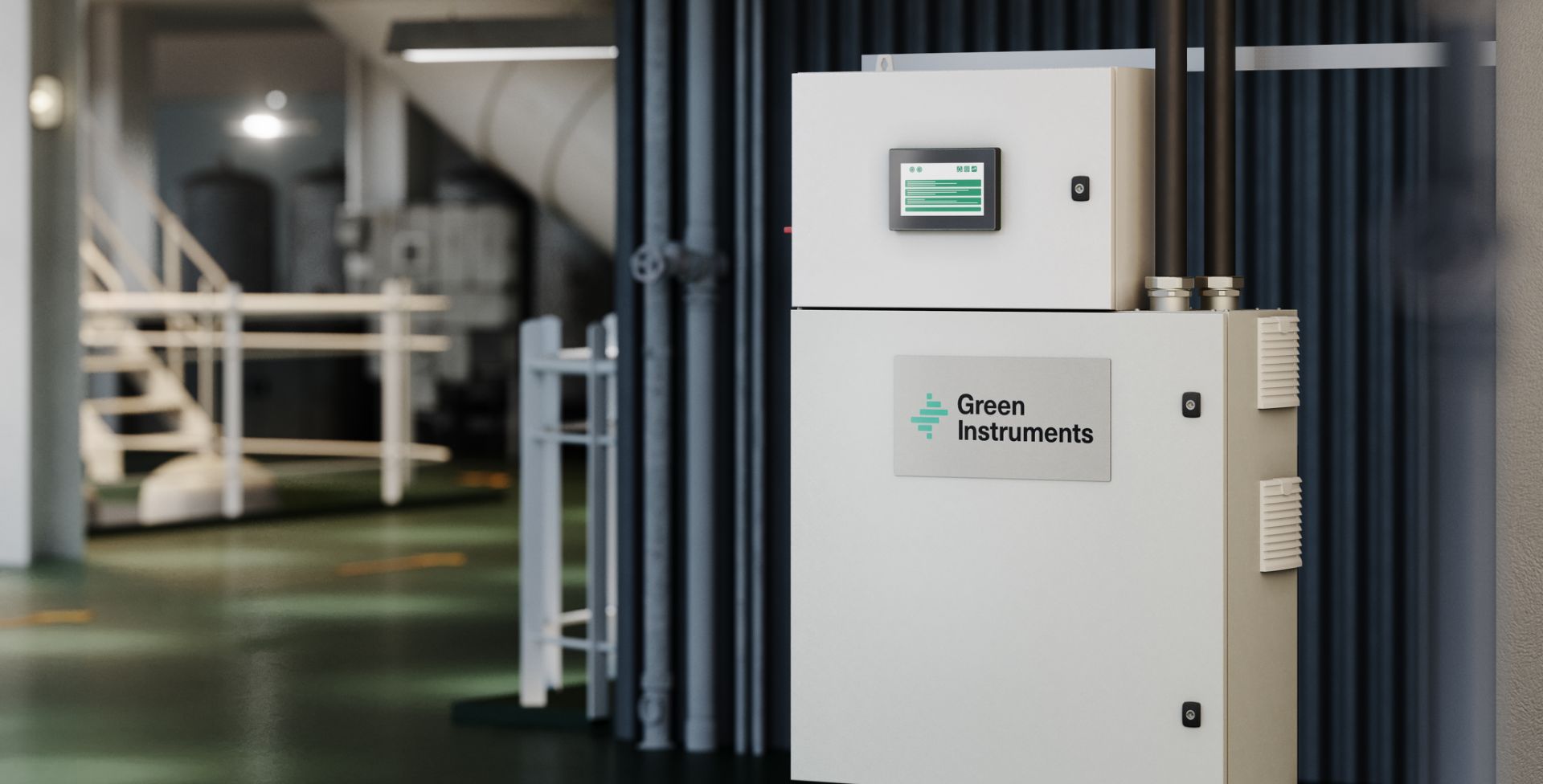

G7200 Multi Gas Monitoring System
The G7200 Multi Gas Monitoring System allows operators to track harmful emissions in real-time, ensuring compliance, protecting health and the environment, and boosting operational efficiency while enhancing trust.
Strategic Advantages
The G7200 Multi Gas Monitoring System, also known as a CEMS, draws from direct feedback and insights from our customers and is deliberately crafted for the harsh maritime environment. The system employs eco-friendly cooling methods, eliminating harmful refrigerants.
Optional remote access enhances system management from anywhere, supported by our global service network for a cost-effective ownership model.
Simple operation
The G7200 Multi Gas Monitoring System uses non-dispersive infrared/ultraviolet technology with up to three gas analyzers. It samples from four points, ensuring real-time, efficient monitoring and rapid response to excessive emissions.
The system is equipped with a user-friendly HMI that enables easy display and control of the entire system. In addition to showing the operational status, the HMI simplifies maintenance with a built-in maintenance program, ensuring proper and timely care of the system.
Key features
- MEPC 340 (77) compliant
- Durable and robust design for high ambient temperatures
- Fast, accurate and reliable gas detection with well-proven extraction system
- 5-step filtration
- Modular design for customized monitoring profile
- Measures SO2, CO2, CH4, NO2, and NO levels
- Failsafe zero air system with integrated air treatment unit
- Up to four sample points with balanced sampling frequency
- Low gas flow for low filter consumption
- Easy replacement of consumable parts by crew or Green Instruments service support
Certificates
Need more information?
Submit your e-mail and get direct access to manuals and other documentation.
Designed for purpose
Why use multi gas monitors?
Harmful emissions pose high risk to the environment and human health. With multi gas monitoring, operators can track harmful emissions in real-time, ensuring compliance, protecting health and the environment, while improving operational efficiency.
Effortless monitoring with enhanced capacity
Multiplexer
The G7290 Multiplexer add-on doubles the capacity of the G7200 Multi Gas Monitoring System, enabling extracts from up to four sample points with balanced sampling frequency.
Positioned closer to stacks, the Multiplexer extends the acceptable distance between the G7200 and the sample probe while reducing the need for long heated hoses and complex installations.
A simplified installation is both more cost-effective and requires less maintenance compared to dual systems.
Service and support
The G7200 Multi Gas Monitoring System has easy installation and low maintenance, thanks to its low gas flow design. It runs for extended periods before servicing, with easily replaceable parts. We offer full service for replacements and retrofits to ensure peak performance throughout its lifespan.
