Oxygen Analyzers

G3620 Stack Gas Oxygen Analyzing System

The G3620 Stack Gas Oxygen Analyzing System is designed to accurately and efficiently monitor oxygen levels to control and optimize combustion efficiency, thus saving fuel as well as preventing the emission of black smoke and soot.

Contact us

Product information

G3620 Stack Gas Oxygen Analyzing System

Robust design and reliable monitoring

Green Instruments oxygen analyzing systems provide user-friendly and robust monitoring of oxygen in several industrial environments. Stack gas is the exhaust gas emitted from boilers. The G3620 Stack Gas Oxygen Analyzing System provides data for controlling the fuel-air ratio in the burning process and is used for controlling combustion and optimizing boiler efficiency. In other words, the data provided is useful for energy optimization and environmental compliance. Insufficient oxygen supply leads to poor combustion, fuel waste, and loss of energy as well as more black smoke and soot in the atmosphere. With the stack gas oxygen analyzer, savings of 3-5% in fuel consumption are achievable. Even used in smaller boilers, the payback period is just a few months.

Simple operation

The heart of each Green Instruments oxygen analyzer is a microprocessor-based unit with a simple menu structure that ensures a quick set-up procedure. The oxygen analyzers are designed for easy replacement of parts and simple system calibration. They use a zirconia sensor cell, which is based on well-proven and reliable sensor technology.

Control combustion and optimize boiler efficiency

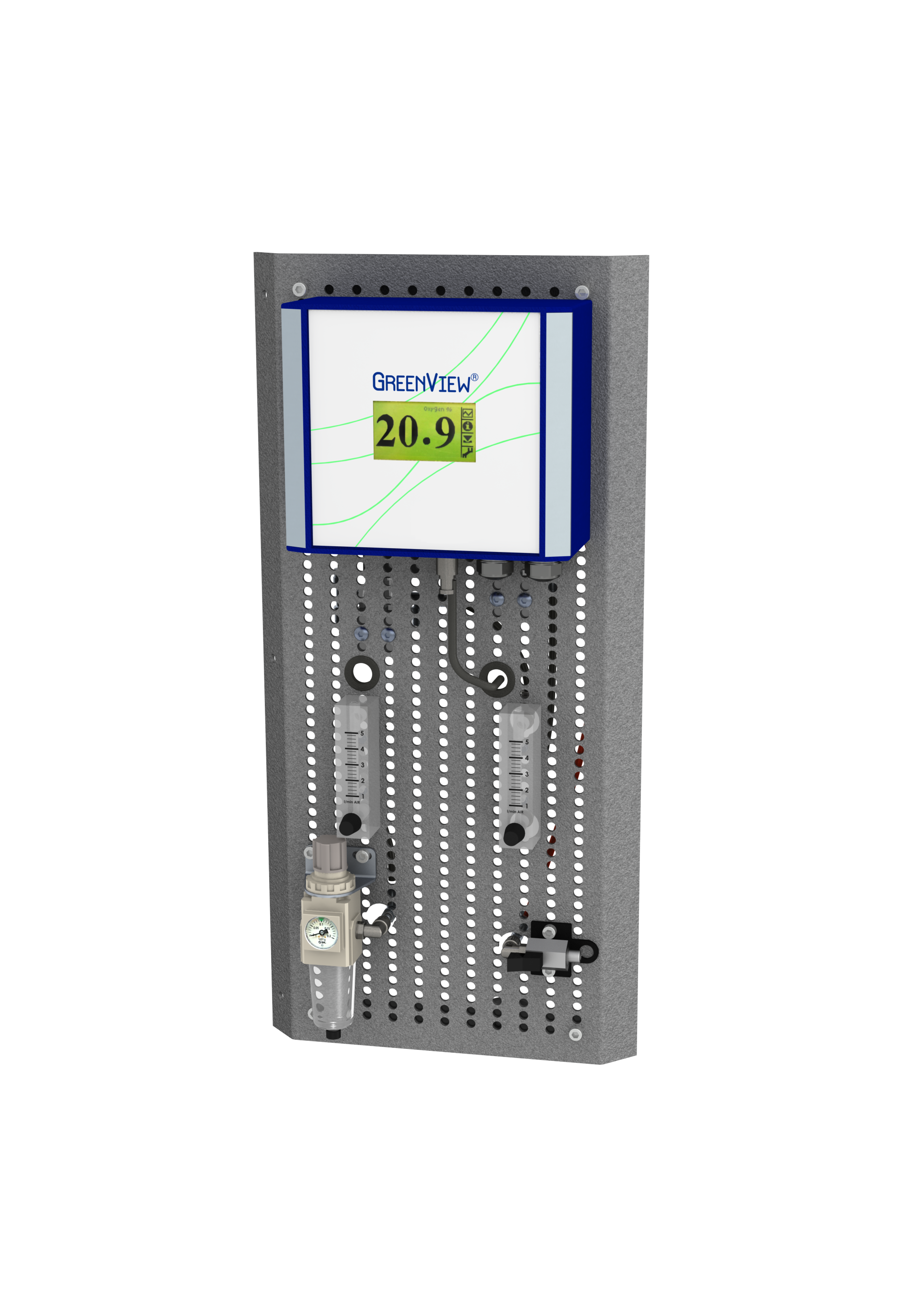

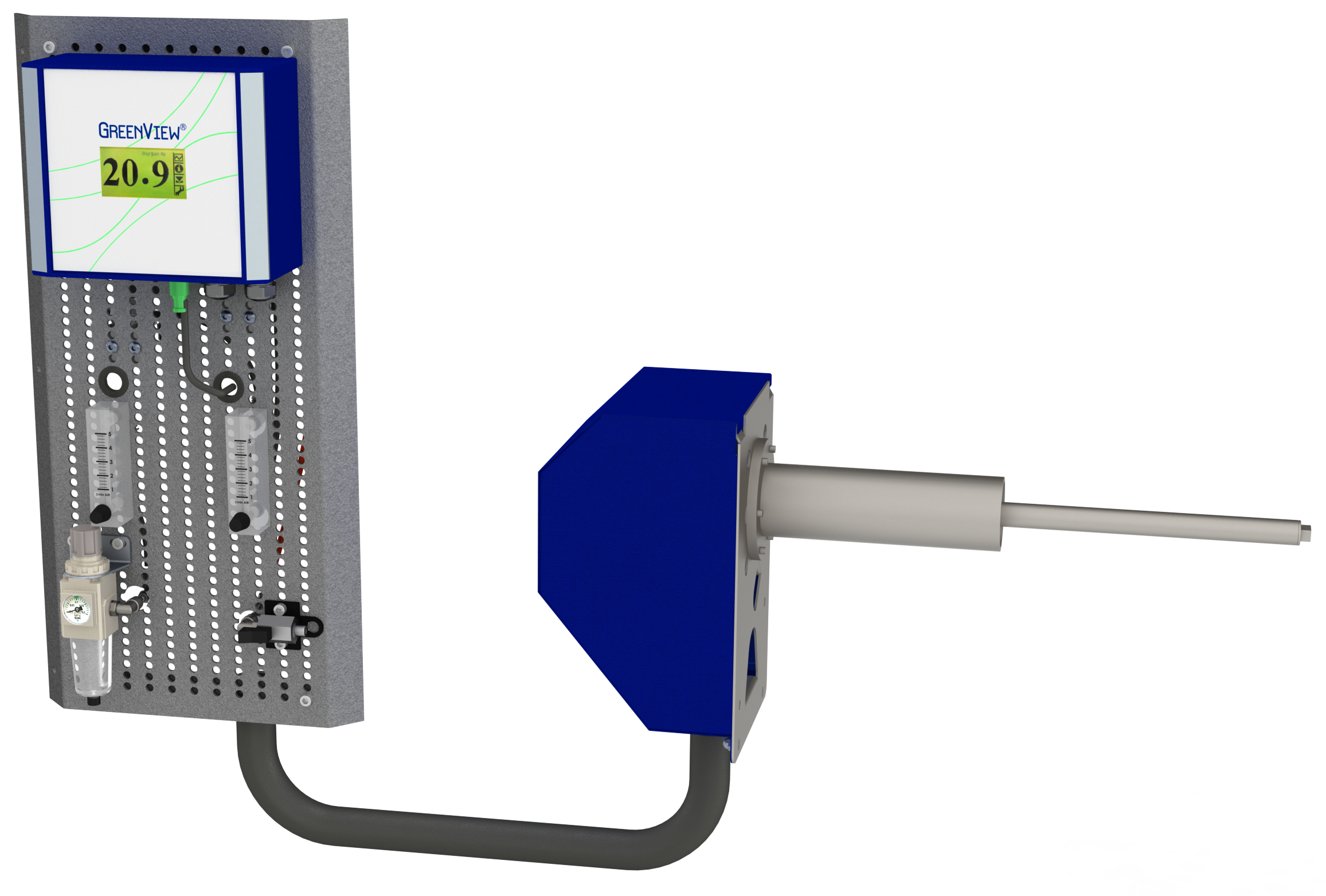

The G3620 Stack Gas Oxygen Analyzing System is a decisive tool consisting of an oxygen analyzer, a sampling board, and an ejector probe with an oxygen sensor for optimizing boiler efficiency and reducing excess oxygen. Too much excess oxygen absorbs heat, which means valuable energy is lost. The system is installed in the stack close to the boiler, providing real-time, wet oxygen measurements under actual exhaust gas conditions. This means that the stack gas is analyzed in-situ without being led through vulnerable sampling lines. The analyzer is highly configurable, delivering outstanding performance and reliable in-situ real-time monitoring.

Simple calibration and automatic backflushing

Calibration of the G3620 Stack Gas Oxygen Analyzing System is simple and automatic, ensuring minimum maintenance. Calibration is executed at regular intervals and uses instrument air. Automatic backflushing of the probe head keeps it clean from loose soot and dust.

The ejector probe

Ejector probes are used in areas with low or negative gas pressure. The ejector probe on the G3620 Stack Gas Oxygen Analyzing System drives an ejector, drawing the sample gas into the measuring chamber. This ensures a fast response time.

Service and support

The G3620 Stack Gas Oxygen Analyzing System is compact and simple to install. Consumable parts are easy to replace. In the event that assistance is required, for example with the replacement of parts or with retrofitting, Green Instruments provides full service and support to ensure optimal operation throughout the entire product lifetime.

Key features

  • Optimizes boiler efficiency
  • Robust and compact design
  • Simple installation – minimal footprint
  • Simple calibration
  • True wet measurement of excess oxygen in exhaust gas
  • Configurable measuring range and signal outputs
  • Automatic artificial calibration
  • Automatic backflushing for purging filter at probe head
  • Low cost of ownership
  • Global service and support
